PHYS 241: Harmonic Oscillator Chains

Figure 1

Section 3.2.1 of lecture notes: Normal modes for 4 coupled oscillators

Figure 2

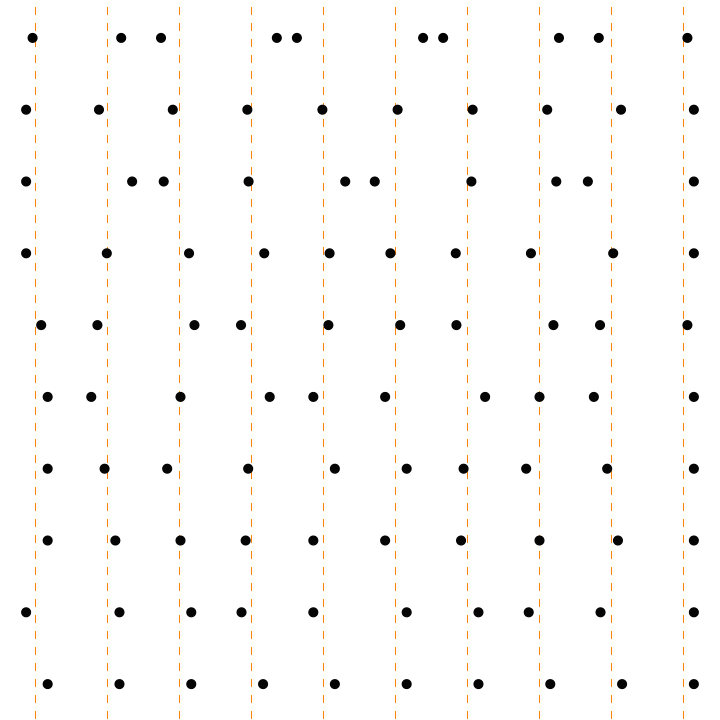

Section 3.2.1 of lecture notes: Normal modes for 10 coupled oscillators

Figure 3

Section 3.2.1 of lecture notes, Eq. (3.50): Time evolution of 30 coupled oscillators when only the first oscillator is initially displaced

Figure 4

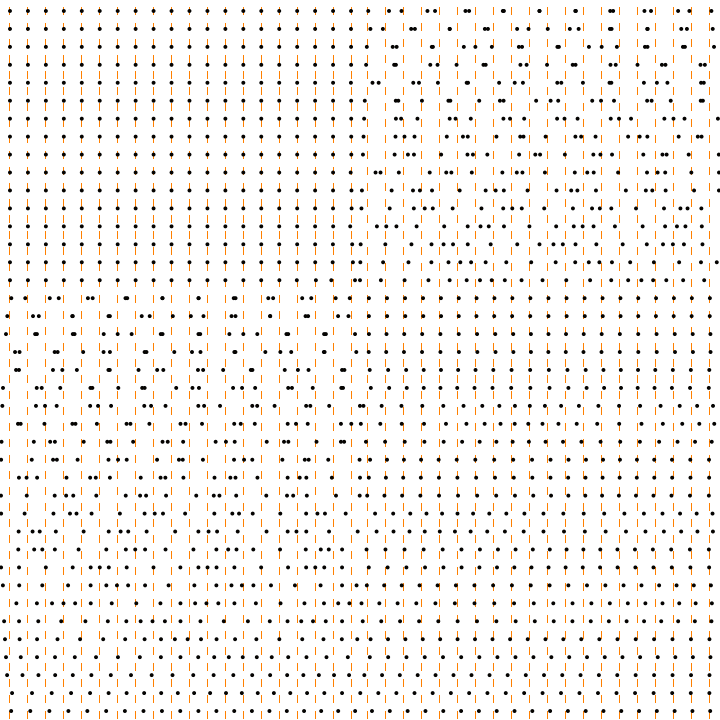

Section 3.2.3 of lecture notes: Normal modes of coupled oscillators with impedance mismatch

Figure 5

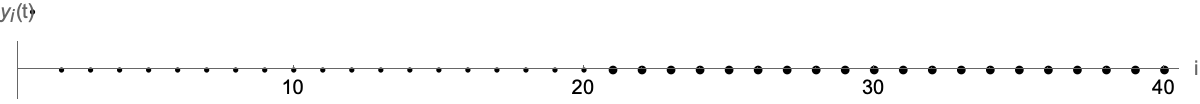

Section 3.2.3 of lecture notes: Time evolution of 40 mismatched coupled oscillators when only the first oscillator is initially displaced
